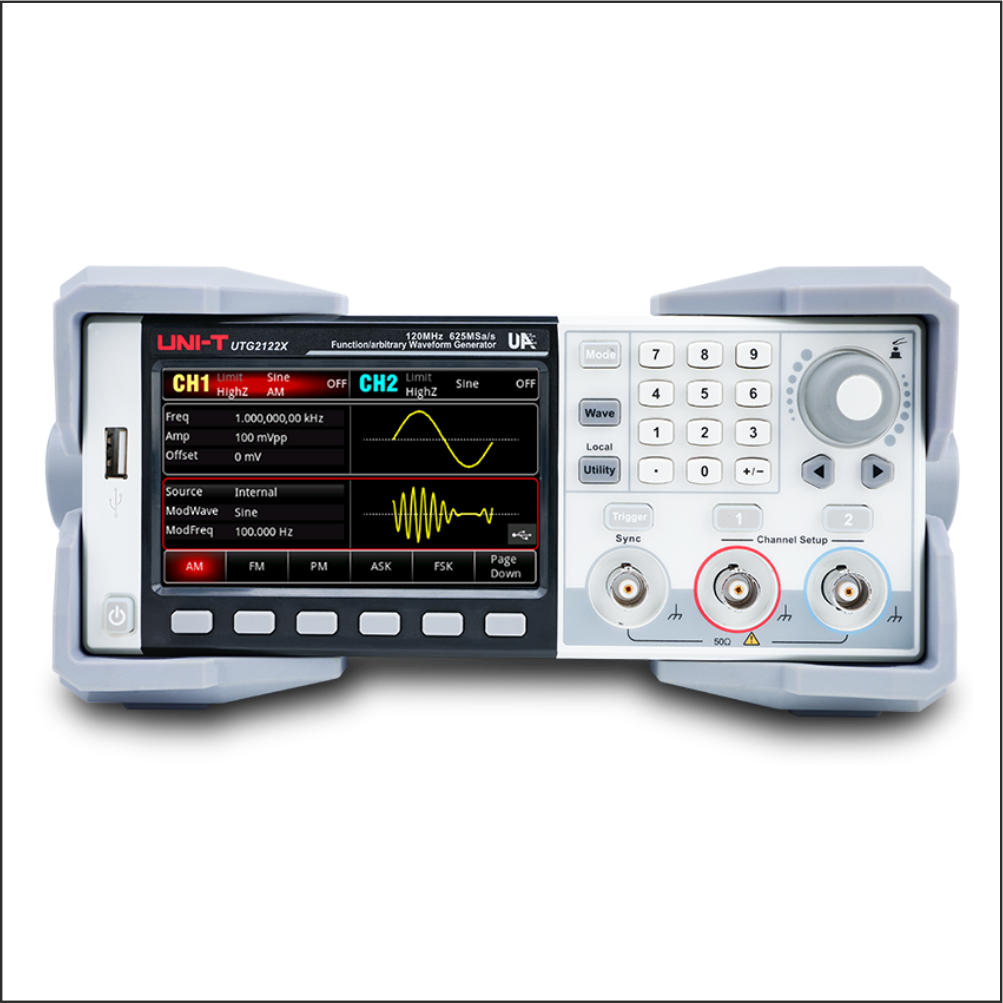

UTG2000X Series Function/Arbitrary Waveform Generator
The UTG2000X series uses DDS technology to produce accurate and stable waveform output with a resolution as low as 1μHz. It is an economical, high performance, multi-function function/arbitrary waveform generator. It can generate accurate, stable, pure and low distortion output signals. Convenient operation, superior technical specifications and humanized graphic display. It is a multi-purpose device to meet the needs of learning and testing and to improve work efficiency
Description
Product Features:
- Dual channel with a maximum frequency output of 120 MHz and a maximum output amplitude of 20 Vpp.
- 625 MSa/s sample rate & 16-bit vertical resolution.
- Multiple analog & digital modulation function: AM, PM, FM, DSB-AM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, & SUM
- Square wave with the maximum frequency of 50 MHz and low jitter
- Wide dynamic & high-precision pulse wave with adjustable edge time, which can achieve fine edge time adjustment & has extremely high adjustment resolution & range
- Excellent performance with low harmonic distortion
- Supports frequency sweep & burst output
- A low-jitter waveform can be generated point by point, with an arbitrary waveform length ranging from 8 points to 64 mega points (Mpts)
- Supports channel copying, following, & stacking settings
- Can generate arbitrary waveform through arbitrary waveform editor on the upper computer
- 7-bit hard frequency counter
- Built-in 200 arbitrary waves
- Standard USB Host, USB Device, & LAN interface
- Support SCPI (programmable instrument standard commands)
- 4.3 inch TFT LCD capacitive touch display screen
